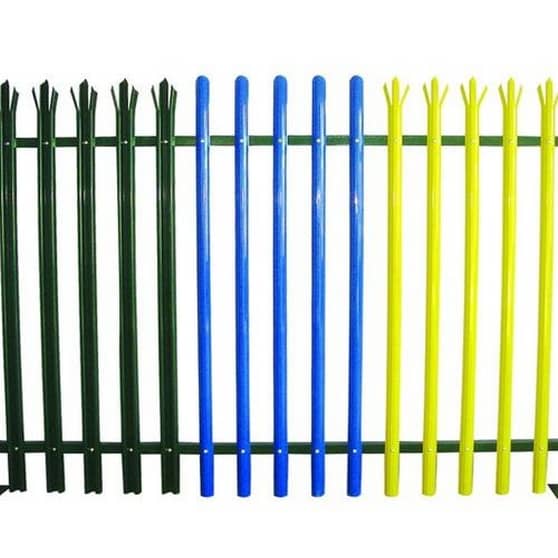

D Section Palisade Fence
Palisade fences are strong, robust, steel pale, post and rail fence systems which rake to sloping ground. They are a rigid bolted fence system with anti-tamper shear nuts.
Post:
2400 High fence – 100×45TFB/3000 High Fence – 150 UB 14.0

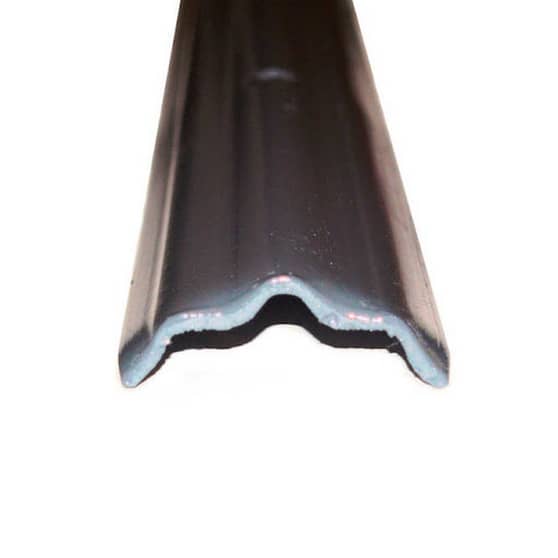

Rail:
50x50x6 EA
Fish Plate:
40×8140 Long

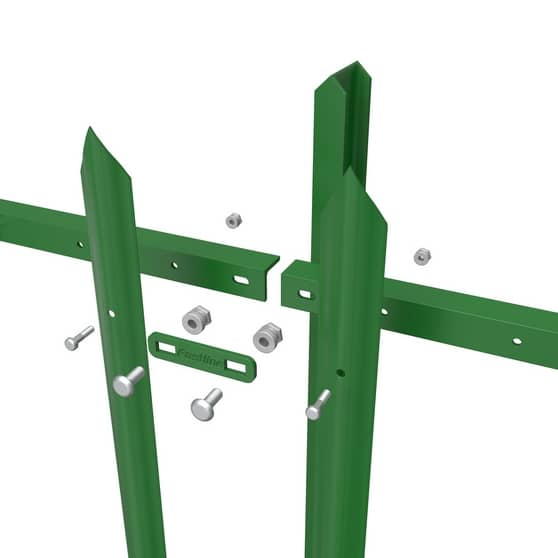

Rail Fixings:
M12x30 Cuphead Bolt and Shear Nut
Pale Fixings:
M8x25 T Bolt and Shear Nut or Stainless Steel Huck Pin and Collar
Mid Bay Support:
M12x500 Threaded Rod and 2 x Nuts

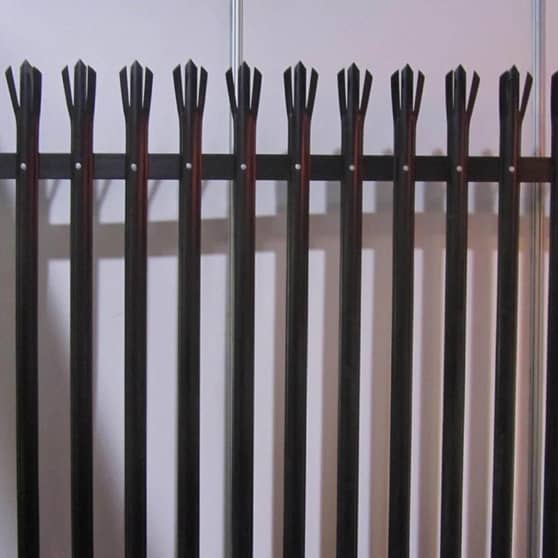

FEATURES：Palisade is a straight pale design, provides increased scaling difficulty with an attack side outwardly curved pale top.
PROPERTY：Palisade fences is Anti-climb profile,tamper resistant fixings,multi-directional triple spiked top.
APPLICATION：Palisade fences is Optional colour choice,can be integrated with electric fencing ,installation on level or sloping sites ,Corrosive resistant.
